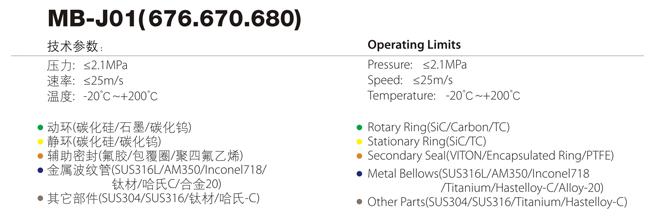

SLK 670/676/680 机械密封

SLK670/676/680 机械密封

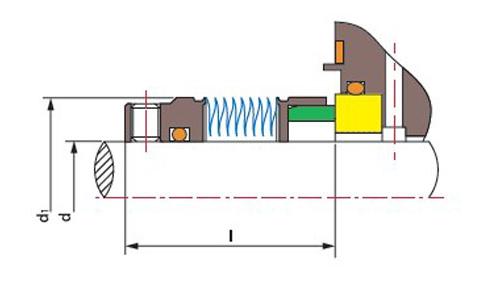

Seal size
 d(inches)

d1

l

0.750

1.312

1.250

0.875

1.437

1.250

0.937

1.500

1.250

1.000

1.562

1.250

1.125

1.687

1.250

1.250

1.812

1.312

1.375

1.937

1.437

1.500

2.062

1.437

1.625

2.187

1.437

1.750

2.312

1.437

1.875

2.437

1.500

2.000

2.562

1.500

2.125

2.687

1.500

2.250

2.812

1.562

2.375

2.937

1.562

2.500

3.187

1.562

2.625

3.312

1.625

2.750

3.437

1.625

2.875

3.625

1.687

3.000

3.750

1.687

3.125

3.875

1.750

3.250

4.000

1.750

3.375

4.125

1.750

3.500

4.250

1.875

3.625

4.375

1.875

3.750

4.500

1.875

3.875

4.625

1.875

4.000

4.750

1.875

4.250

5.187

1.903

4.500

5.437

1.903

4.750

5.687

1.903

5.000

5.937

1.903

5.250

6.213

1.903

5.500

6.463

1.903

5.750

6.714

1.903

6.000

6.964

1.903


Seal size
d(mm)

d1

l

18

32.0

27.5

20

33.3

27.5

22

36.0

27.5

24

38.1

30.0

25

39.0

30.0

28

42.0

32.5

30

44.0

32.5

32

46.0

32.5

33

47.0

32.5

35

49.2

32.5

38

52.4

34.0

40

55.6

34.0

43

58.7

34.0

45

58.7

34.0

48

61.9

34.0

50

65.1

34.5

53

68.3

34.5

55

71.0

34.5

60

74.6

39.5

65

84.1

39.5

70

87.3

45.0

75

95.3

45.0

80

98.4

44.5

85

104.8

44.5

90

108.0

49.5

95

114.3

49.5

100

120.7

49.5

105

131.7

48.3

110

138.1

48.3

115

144.5

48.3

120

144.5

48.3

125

150.8

48.3

130

157.8

48.3

140

170.5

48.3

150

176.9

48.3
