SLKC01机械密封 替换 CHESTERTON 886HT

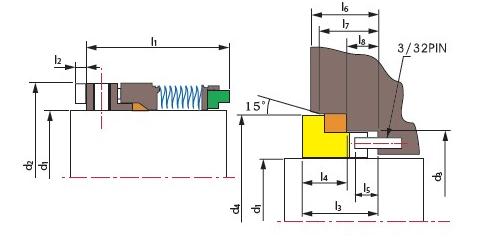

d1 | d2 | l1 | l2 | d1 | d2 | l1 | l2 | |
1.000 | 1.562 | 1.687 | 0.125 | 25 | 39.7 | 42.8 | 3.2 | |
1.125 | 1.687 | 1.562 | 0.125 | 28 | 42.8 | 39.7 | 3.2 | |
1.250 | 1.812 | 1.562 | 0.125 | 30 | 46.0 | 42.8 | 3.2 | |
1.375 | 1.937 | 1.750 | 0.125 | 32 | 46.0 | 42.8 | 3.2 | |
1.500 | 2.170 | 1.750 | 0.164 | 35 | 49.2 | 44.5 | 3.2 | |
1.625 | 2.295 | 1.750 | 0.164 | 38 | 55.1 | 44.5 | 4.2 | |
1.750 | 2.420 | 1.750 | 0.164 | 40 | 58.3 | 44.5 | 4.2 | |
1.875 | 2.545 | 1.750 | 0.164 | 42 | 61.5 | 44.5 | 4.2 | |
2.000 | 2.670 | 1.750 | 0.164 | 45 | 62.3 | 44.5 | 4.2 | |
2.125 | 2.795 | 1.750 | 0.164 | 48 | 64.6 | 44.5 | 4.2 | |
2.250 | 2.920 | 1.875 | 0.164 | 50 | 67.8 | 44.5 | 4.2 | |
2.375 | 3.045 | 1.875 | 0.164 | 55 | 74.2 | 47.6 | 4.2 | |
2.500 | 3.187 | 1.875 | 0.164 | 60 | 77.3 | 47.6 | 4.2 | |
2.625 | 3.312 | 1.875 | 0.164 | 65 | 84.1 | 47.6 | 4.2 |
d1 | d4 | l3 | d3 | l6 | l7 | l8 | l4 | l5 |
1.000 | 1.625 | 0.437 | 1.384 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.125 | 1.750 | 0.437 | 1.509 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.250 | 1.875 | 0.437 | 1.634 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.375 | 2.000 | 0.437 | 1.759 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.500 | 2.125 | 0.437 | 1.884 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.625 | 2.375 | 0.500 | 2.134 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
1.750 | 2.500 | 0.500 | 2.259 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
1.875 | 2.625 | 0.500 | 2.384 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
2.000 | 2.750 | 0.500 | 2.509 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
2.125 | 3.000 | 0.562 | 2.759 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.250 | 3.125 | 0.562 | 2.884 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.375 | 3.250 | 0.562 | 3.009 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.500 | 3.375 | 0.562 | 3.134 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.625 | 3.375 | 0.625 | 3.134 | 0.682 | 0.521 | 0.341 | 0.379 | 0.170 |
d1 | d4 | l3 | d3 | l6 | l7 | l8 | l4 | l5 |
1.000 | 1.625 | 0.437 | 1.384 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.125 | 1.750 | 0.437 | 1.509 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.250 | 1.875 | 0.437 | 1.634 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.375 | 2.000 | 0.437 | 1.759 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.500 | 2.125 | 0.437 | 1.884 | 0.551 | 0.390 | 0.240 | 0.261 | 0.125 |
1.625 | 2.375 | 0.500 | 2.134 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
1.750 | 2.500 | 0.500 | 2.259 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
1.875 | 2.625 | 0.500 | 2.384 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
2.000 | 2.750 | 0.500 | 2.509 | 0.592 | 0.431 | 0.251 | 0.314 | 0.125 |
2.125 | 3.000 | 0.562 | 2.759 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.250 | 3.125 | 0.562 | 2.884 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.375 | 3.250 | 0.562 | 3.009 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.500 | 3.375 | 0.562 | 3.134 | 0.641 | 0.480 | 0.300 | 0.346 | 0.156 |
2.625 | 3.375 | 0.625 | 3.134 | 0.682 | 0.521 | 0.341 | 0.379 | 0.170 |
