SLK2100 机械密封件
可以替换 AESSEAL B05,克兰 2100 和福斯 140
密封腔压力:P≤0~1.2MPa
密封腔温度:t=-40℃~150℃
线 速 度:Vg≤15m/s
单端面
非平衡型密封
橡胶波纹管

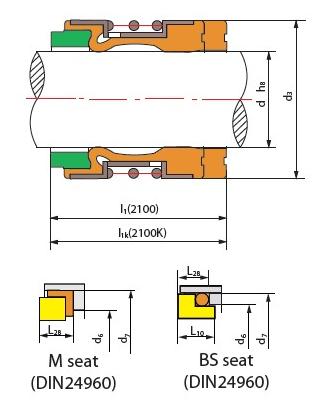

Seal size d(mm) | d3 | d6 | d7 | 2100 | 2100K | M seat | BS seat |
l1 | l1k | l28 | l10 | ||||
10 | 20 | 17 | 21 | 15 | 27.5 | 5 | 6.0 |
12 | 22 | 19 | 23 | 15 | 26.5 | 6 | 6.8 |
14 | 24 | 21 | 25 | 15 | 29.0 | 6 | 6.8 |
15 | 25 | 22 | 26 | 15 | 29.0 | 6 | 6.8 |
16 | 26 | 23 | 27 | 15 | 29.0 | 6 | 6.8 |
18 | 32 | 27 | 33 | 20 | 31.5 | 6 | 7.0 |
20 | 34 | 29 | 35 | 20 | 31.5 | 6 | 7.0 |
22 | 36 | 31 | 37 | 20 | 31.5 | 6 | 7.0 |
24 | 38 | 33 | 39 | 20 | 34.0 | 6 | 7.0 |
25 | 39 | 34 | 40 | 20 | 34.0 | 6 | 7.0 |
28 | 42 | 37 | 43 | 26 | 36.5 | 6 | 7.0 |
30 | 44 | 39 | 45 | 26 | 35.5 | 7 | 8.0 |
32 | 46 | 42 | 48 | 26 | 35.5 | 7 | 8.0 |
33 | 47 | 42 | 48 | 26 | 35.5 | 7 | 8.0 |
35 | 49 | 44 | 50 | 26 | 34.5 | 8 | 9.0 |
38 | 54 | 49 | 56 | 30 | 37.0 | 8 | 9.0 |
40 | 56 | 51 | 58 | 30 | 37.0 | 8 | 9.0 |
43 | 59 | 54 | 61 | 30 | 37.0 | 8 | 9.0 |
45 | 61 | 56 | 63 | 30 | 37.0 | 8 | 9.0 |
48 | 64 | 59 | 66 | 30 | 35.0 | 10 | 11.0 |
50 | 66 | 62 | 70 | 30 | 37.5 | 10 | 11.0 |
53 | 69 | 65 | 73 | 30 | 37.5 | 10 | 11.0 |
55 | 71 | 67 | 75 | 30 | 37.5 | 10 | 11.0 |
60 | 80 | 72 | 80 | 33 | 40.5 | 12 | 12.7 |
65 | 85 | 77 | 85 | 33 | 40.5 | 12 | 12.7 |
70 | 90 | 83 | 92 | 33 | 48.0 | 12 | 12.7 |
75 | 99 | 88 | 97 | 40 | 48.0 | 12 | 12.7 |
