适用工况:Applicable working condition: 压 力：0~1.0MPa 温 度：—20℃～十180℃ 转 速：＜3000r/min 介 质：含颗粒的废水、油、污水等介质。 |
|
Pressure: 0～6MPa Temperature: —50℃～十180℃ Rotary Speed: ＜3000r／min Media：Oil, water, organic solvent and other corrosive media. |
| 结构特点 | Structure Characteristics: |
| 内装式、单端面、单弹簧、橡胶波纹管机械密封，动环靠橡胶波纹管的过盈量驱动，浮动性好，符合DIN24960标准，背靠背安装亦符合DIN24960标准双端面机械密封，静环有多种结构以满足安装需要，可与德国博格曼MG1型机械密封互换。 |
| It is of built-in type, single seal face, single spring and ubber-bellows mechanical seal. Rotating ring is driven by interference of rubber-bellows;Excellent floatability, according to Standard DIN24960; Assembled together with back to back that accords with the standard double mechanical seal of DIN24960. Various tructure of stationary ring can satisfy the demands of requirement. It can also replace with German Burgmann mechanical seal type MG1 utually. |

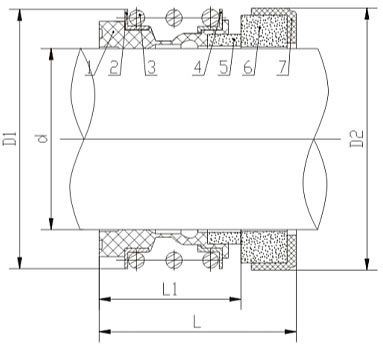

| 主要零部件名称 | Name of Main Components and Parts: |
| l、橡胶波纹管 | 1、Rubber bellow |
| 2、后推环 | 2、Black Thust Ring |
| 3、弹簧 | 3、Spring |
| 4、前推环 | 4、Front Thust Ring |
| 5、动环 | 5、Rotating Ring |
| 6、静环 | 6、Stationary Ring |
| 7、静环L垫 | 7、Stationary L Gasketer |
