适用工况:Applicable working condition: 压 力：0～1MPa 温 度：—50℃～十180℃ 转 速：＜3000r／min 介 质：油、水、有机溶剂和腐蚀性介质 |
|
Pressure: 0～6MPa Temperature: —50℃～十180℃ Rotary Speed: ＜3000r／min Media：Oil, water, organic solvent and other corrosive media. |
| 结构特点 | Structure Characteristics: |
| 内装内流式、单端面、非平衡型密封，弹簧补偿结构有小弹簧和波片弹簧两种结构可供选择，应用广泛、可换性强符合DIN24960、API610标准。 |
|
It is of built-in and internal flow type, single seal face and
|

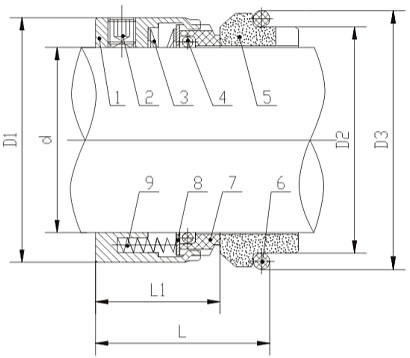

| l、弹簧座 | 1、Spring Adapter |
| 2、紧定螺钉 | 2、Set Screw |
| 3、波片弹簧 | 3、ripple flake spring |
| 4、动环0形圈 | 4、Rotating 0-ring |
| 5、静环 | 5、Stationary Ring |
| 6、静环0形圈 | 6、Stationary 0-ring |
| 7、动环 | 7、Rotating Ring |
| 8、推环 | 8、Thrust Ring |
| 9、弹簧 | 9、Spring |
