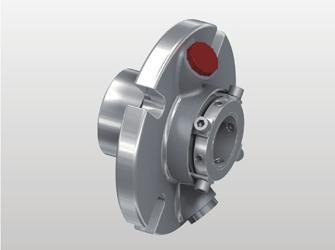

SCSM机械密封替换 AESSEAL CSM
| 型 号： | SCSM |
| 温 度： | -30℃～+220℃（mm） |
| 技术参数： | |
| 压 力： | ≤2.1MPa （mm） |
| 线 速 度： | ≤25米/秒 |
| 材 料： | 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(柔性石墨） 金属波纹管(SUS316L/AM350/Inconel718/钛材/哈氏C/合金20 |

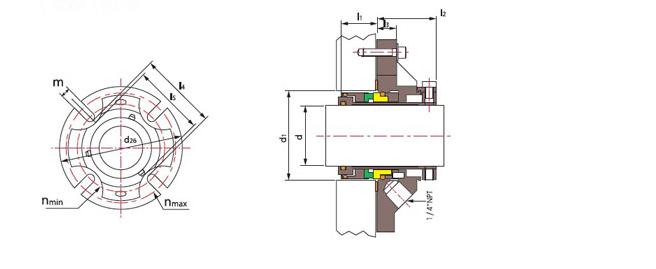

d | d26 | l4 | l5 | l3 | d1min | d1mint | d1max | nmin | nmax | mmax | l1 | l2 | Kmax |
1 | 4.125 | 2.125 | 1.937 | 0.519 | 1.625 | 1.665 | 1.937 | 2.687 | 3.562 | 1/2 | 1.125 | 1.59 | 0.04 |
1.125 | 4.25 | 2.25 | 2.063 | 0.519 | 1.75 | 1.79 | 2.062 | 2.812 | 3.687 | 1/2 | 1.125 | 1.59 | 0.04 |
1.25 | 4.375 | 2.375 | 2.187 | 0.519 | 1.875 | 1.915 | 2.187 | 2.937 | 3.812 | 1/2 | 1.125 | 1.59 | 0.04 |
1.375 | 4.375 | 2.5 | 2.312 | 0.519 | 2 | 2.04 | 2.25 | 3.062 | 3.812 | 1/2 | 1.125 | 1.59 | 0.04 |
1.5 | 5 | 2.812 | 2.562 | 0.644 | 2.25 | 2.29 | 2.375 | 3.375 | 4.437 | 1/2 | 1.125 | 1.752 | 0.04 |
1.625 | 5 | 2.812 | 2.562 | 0.644 | 2.375 | 2.415 | 2.5 | 3.375 | 4.437 | 1/2 | 1.125 | 1.752 | 0.04 |
1.75 | 5.5 | 3.187 | 2.812 | 0.644 | 2.5 | 2.54 | 2.75 | 3.75 | 4.937 | 1/2 | 1.125 | 1.752 | 0.04 |
1.875 | 5.5 | 3.187 | 2.812 | 0.644 | 2.625 | 2.665 | 2.875 | 3.75 | 4.937 | 1/2 | 1.125 | 1.752 | 0.04 |
2 | 6 | 3.562 | 3.063 | 0.644 | 2.75 | 2.79 | 3 | 4.125 | 5.437 | 1/2 | 1.125 | 1.752 | 0.04 |
2.000-AC | 5.25 | 3.45 | 3.035 | 0.644 | 2.75 | 2.79 | 3 | 4 | 4.75 | 1/2 | 1.125 | 1.752 | 0.04 |
2.125 | 6 | 3.562 | 3.063 | 0.644 | 2.875 | 2.915 | 3.125 | 4.125 | 5.437 | 1/2 | 1.125 | 1.752 | 0.04 |
2.25 | 6.5 | 3.812 | 3.312 | 0.644 | 3 | 3.04 | 3.25 | 4.5 | 5.812 | 5/8 | 1.125 | 1.752 | 0.04 |
2.375 | 6.5 | 3.812 | 3.312 | 0.644 | 3.125 | 3.165 | 3.375 | 4.5 | 5.812 | 5/8 | 1.125 | 1.752 | 0.04 |
2.5 | 7 | 4.312 | 3.812 | 0.769 | 3.375 | 3.435 | 3.625 | 5 | 6.312 | 5/8 | 1.25 | 1.877 | 0.06 |
2.625 | 7 | 4.312 | 3.812 | 0.769 | 3.5 | 3.56 | 3.75 | 5 | 6.312 | 5/8 | 1.25 | 1.877 | 0.06 |
2.75 | 7 | 4.312 | 3.812 | 0.769 | 3.625 | 3.685 | 3.875 | 5 | 6.312 | 5/8 | 1.25 | 1.877 | 0.06 |
2.875 | 7.5 | 4.937 | 4.25 | 0.769 | 3.75 | 3.81 | 4.125 | 5.625 | 6.812 | 5/8 | 1.25 | 1.877 | 0.06 |
3 | 7.5 | 4.937 | 4.25 | 0.769 | 3.875 | 3.935 | 4.25 | 5.625 | 6.812 | 5/8 | 1.25 | 1.877 | 0.06 |
3.125 | 7.5 | 4.937 | 4.25 | 0.769 | 4 | 4.06 | 4.375 | 5.625 | 6.812 | 5/8 | 1.25 | 1.877 | 0.06 |
3.25 | 8 | 5.312 | 4.625 | 0.769 | 4.125 | 4.185 | 4.5 | 6.125 | 7.187 | 3/4 | 1.25 | 1.877 | 0.06 |
3.375 | 8 | 5.312 | 4.625 | 0.769 | 4.25 | 4.31 | 4.625 | 6.125 | 7.187 | 3/4 | 1.25 | 1.877 | 0.06 |
3.5 | 8 | 5.312 | 4.625 | 0.769 | 4.375 | 4.435 | 4.75 | 6.125 | 7.187 | 3/4 | 1.25 | 1.877 | 0.06 |
3.625 | 8.5 | 5.937 | 5 | 0.769 | 4.5 | 4.56 | 5 | 6.75 | 7.687 | 3/4 | 1.25 | 1.877 | 0.06 |
3.75 | 8.5 | 5.937 | 5 | 0.769 | 4.625 | 4.685 | 5.125 | 6.75 | 7.687 | 3/4 | 1.25 | 1.877 | 0.06 |
3.875 | 8.5 | 5.937 | 5 | 0.769 | 4.75 | 4.81 | 5.25 | 6.75 | 7.687 | 3/4 | 1.25 | 1.877 | 0.06 |
4 | 9 | 6.625 | 5.375 | 0.769 | 4.875 | 4.935 | 5.5 | 7.437 | 8.187 | 3/4 | 1.25 | 1.877 | 0.06 |
4.125 | 9 | 6.625 | 5.375 | 0.769 | 5.125 | 5.185 | 5.875 | 7.437 | 8.187 | 3/4 | 1.25 | 1.877 | 0.06 |
4.25 | 9 | 6.625 | 5.375 | 0.769 | 5.125 | 5.185 | 5.875 | 7.437 | 8.187 | 3/4 | 1.25 | 1.877 | 0.06 |
4.375 | 9.5 | 7 | 5.75 | 0.769 | 5.375 | 5.435 | 6.25 | 7.812 | 8.687 | 3/4 | 1.25 | 1.877 | 0.06 |
4.5 | 9.5 | 7 | 5.75 | 0.769 | 5.375 | 5.435 | 6.25 | 7.812 | 8.687 | 3/4 | 1.25 | 1.877 | 0.06 |
4.625 | 10 | 7.345 | 6.125 | 0.769 | 5.625 | 5.685 | 6.625 | 8.312 | 9.062 | 7/8 | 1.25 | 1.877 | 0.06 |
4.75 | 10 | 7.345 | 6.125 | 0.769 | 5.625 | 5.685 | 6.625 | 8.312 | 9.062 | 7/8 | 1.25 | 1.877 | 0.06 |
4.875 | 10 | 7.345 | 6.125 | 0.769 | 5.875 | 5.935 | 6.625 | 8.312 | 9.062 | 7/8 | 1.25 | 1.877 | 0.06 |
5 | 10 | 7.345 | 6.125 | 0.769 | 5.875 | 5.935 | 6.625 | 8.312 | 9.062 | 7/8 | 1.25 | 1.877 | 0.06 |
d | d26 | l4 | l5 | l3 | d1min | d1mint | d1max | nmin | nmax | mmax | l1 | l2 | Kmax |
24 | 104.8 | 54 | 49.2 | 13.2 | 40 | 41 | 46 | 67 | 90.5 | 12 | 28.6 | 40.5 | 1 |
25 | 104.8 | 54 | 49.2 | 13.2 | 41 | 42 | 49 | 67 | 90.5 | 12 | 28.6 | 40.5 | 1 |
28 | 108 | 57.2 | 52.4 | 13.2 | 44 | 45 | 52.3 | 70.3 | 93.6 | 12 | 28.6 | 40.5 | 1 |
30 | 111 | 60.4 | 55.6 | 13.2 | 46 | 47 | 55.5 | 73.5 | 96.8 | 12 | 28.6 | 40.5 | 1 |
32 | 111 | 60.4 | 55.6 | 13.2 | 48 | 49 | 55.5 | 73.5 | 96.8 | 12 | 28.6 | 40.5 | 1 |
33 | 111 | 60.4 | 55.6 | 13.2 | 49 | 50 | 55.5 | 73.5 | 96.8 | 12 | 28.6 | 40.5 | 1 |
35 | 111 | 63.5 | 58.8 | 13.2 | 51 | 52 | 57.5 | 76.6 | 96.8 | 12 | 28.6 | 40.5 | 1 |
38 | 127 | 71.5 | 65 | 16.4 | 57.2 | 58.2 | 60.4 | 85.7 | 114.3 | 12 | 28.6 | 44.5 | 1 |
40 | 127 | 71.5 | 65 | 16.4 | 58 | 59 | 60.4 | 85.7 | 114.3 | 12 | 28.6 | 44.5 | 1 |
43 | 139.7 | 81 | 71.4 | 16.4 | 61 | 62 | 69.9 | 95.3 | 127 | 12 | 28.6 | 44.5 | 1 |
45 | 139.7 | 81 | 71.4 | 16.4 | 63.5 | 64.5 | 69.9 | 95.3 | 127 | 12 | 28.6 | 44.5 | 1 |
48 | 139.7 | 81 | 71.4 | 16.4 | 66.7 | 67.7 | 73 | 95.3 | 127 | 12 | 28.6 | 44.5 | 1 |
50 | 152.4 | 90.5 | 77.8 | 16.4 | 68 | 69 | 76.2 | 104.8 | 139.7 | 12 | 28.6 | 44.5 | 1 |
53 | 152.4 | 90.5 | 77.8 | 16.4 | 71 | 72 | 76.2 | 104.8 | 139.7 | 12 | 28.6 | 44.5 | 1 |
55 | 165.1 | 96.8 | 84.1 | 16.4 | 74 | 75 | 82.5 | 114.3 | 149.2 | 16 | 28.6 | 44.5 | 1 |
58 | 165.1 | 96.8 | 84.1 | 16.4 | 76.2 | 77.2 | 82.5 | 114.3 | 149.2 | 16 | 28.6 | 44.5 | 1 |
60 | 165.1 | 96.8 | 84.1 | 16.4 | 79.4 | 80.4 | 85.7 | 114.3 | 149.2 | 16 | 28.6 | 44.5 | 1 |
63 | 177.8 | 109.5 | 96.8 | 19.6 | 85.8 | 87.3 | 92.1 | 127 | 160.3 | 16 | 31.8 | 47.7 | 1.5 |
65 | 177.8 | 109.5 | 96.8 | 19.6 | 88.9 | 90.4 | 95.3 | 127 | 160.3 | 16 | 31.8 | 47.7 | 1.5 |
68 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 93.6 | 98.4 | 127 | 160.3 | 16 | 31.8 | 47.7 | 1.5 |
70 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 93.6 | 98.4 | 127 | 160.3 | 16 | 31.8 | 47.7 | 1.5 |
75 | 190.5 | 125.4 | 108 | 19.6 | 98.5 | 100 | 108 | 142.9 | 173 | 16 | 31.8 | 47.7 | 1.5 |
80 | 190.5 | 125.4 | 108 | 19.6 | 101.6 | 103.1 | 111.1 | 142.9 | 173 | 16 | 31.8 | 47.7 | 1.5 |
85 | 203.2 | 135 | 117.5 | 19.6 | 108 | 109.5 | 117.5 | 155.6 | 182.5 | 20 | 31.8 | 47.7 | 1.5 |
90 | 215.9 | 150.8 | 127 | 19.6 | 114.3 | 115.8 | 127 | 171.5 | 195.2 | 20 | 31.8 | 47.7 | 1.5 |
95 | 215.9 | 150.8 | 127 | 19.6 | 117.5 | 119 | 130.2 | 171.5 | 195.2 | 20 | 31.8 | 47.7 | 1.5 |
100 | 228.6 | 168.3 | 136.5 | 19.6 | 123.9 | 125.4 | 139.7 | 188.9 | 208 | 20 | 31.8 | 47.7 | 1.5 |
105 | 228.6 | 168.3 | 136.5 | 19.6 | 130.1 | 131.6 | 149.2 | 188.9 | 208 | 20 | 31.8 | 47.7 | 1.5 |
110 | 241.3 | 177.8 | 146.1 | 19.6 | 136.5 | 138 | 158.8 | 198.4 | 220.6 | 20 | 31.8 | 47.7 | 1.5 |
115 | 254 | 186.6 | 155.8 | 19.6 | 142.9 | 144.4 | 168.3 | 211.1 | 230.2 | 22 | 31.8 | 47.7 | 1.5 |
120 | 254 | 186.6 | 155.8 | 19.6 | 142.9 | 144.4 | 168.3 | 211.1 | 230.2 | 22 | 31.8 | 47.7 | 1.5 |
125 | 254 | 186.6 | 155.8 | 19.6 | 149.2 | 150.7 | 168.3 | 211.1 | 230.2 | 22 | 31.8 | 47.7 | 1.5 |
