SLK FS08机械密封

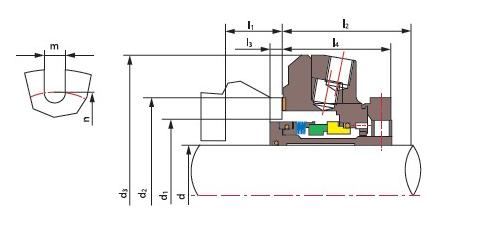

d | d1 | d2 | d3 | l3 | l1 | l4 | l2 | n | m | |
min | max | min | ||||||||
1.000 | 1.625 | 1.875 | 2.115 | 3.69~3.75 | 0.212 | 0.274 | 1.913 | 1.975 | 2.750 | 0.440 |
1.125 | 1.750 | 2.000 | 2.240 | 3.69~3.75 | 0.212 | 0.274 | 1.913 | 1.975 | 2.875 | 0.440 |
1.250 | 1.890 | 2.245 | 2.495 | 4.19~4.25 | 0.212 | 0.274 | 1.913 | 1.975 | 3.125 | 0.562 |
1.375 | 2.000 | 2.375 | 2.615 | 3.94~.00 | 0.212 | 0.264 | 1.913 | 1.975 | 3.250 | 0.440 |
1.437 | 2.250 | 2.688 | 2.775 | 4.72~4.78 | 0.222 | 0.284 | 1.973 | 2.035 | 3.750 | 0.560 |
1.500 | 2.250 | 2.525 | 2.775 | 4.69~4.75 | 0.202 | 0.264 | 1.973 | 2.035 | 3.750 | 0.560 |
1.625 | 2.375 | 2.780 | 3.030 | 4.69~4.75 | 0.202 | 0.264 | 1.973 | 2.035 | 3.750 | 0.560 |
1.750 | 2.500 | 2.875 | 3.150 | 4.94~5.00 | 0.202 | 0.264 | 1.973 | 2.035 | 3.875 | 0.560 |
1.875 | 2.625 | 2.875 | 3.150 | 4.94~5.00 | 0.202 | 0.264 | 1.973 | 2.035 | 3.875 | 0.560 |
1.937 | 2.690 | 2.920 | \ | \ | 0.207 | 0.269 | 1.973 | 2.035 | \ | \ |
2.000 | 2.750 | 3.030 | 3.280 | 5.00~5.12 | 0.202 | 0.264 | 1.973 | 2.035 | 1.120 | 0.688 |
2.125 | 2.875 | 3.125 | 3.430 | 5.94 ~6.00 | 0.202 | 0.264 | 1.973 | 2.035 | 4.250 | 0.750 |
2.250 | 3.000 | 3.280 | \ | \ | 0.206 | 0.268 | 1.973 | 2.035 | \ | \ |
2.375 | 3.125 | 3.687 | 3.975 | 6.32~6.38 | 0.202 | 0.264 | 1.973 | 2.035 | 4.875 | 0.750 |
2.437 | 3.375 | 3.450 | \ | 6.32~6.38 | 0.233 | 0.295 | 1.942 | 2.004 | 4.875 | 0.750 |
2.500 | 3.375 | 3.687 | 3.975 | 6.32 ~6.38 | 0.202 | 0.264 | 1.973 | 2.035 | 4.875 | 0.750 |
2.625 | 3.625 | 4.312 | 4.615 | 7.19~.25 | 0.204 | 0.266 | 2.726 | 2.788 | 5.625 | 0.880 |
2.750 | 3.750 | 4.312 | 4.615 | 7.19~7.25 | 0.204 | 0.266 | 2.726 | 2.788 | 5.625 | 0.880 |
