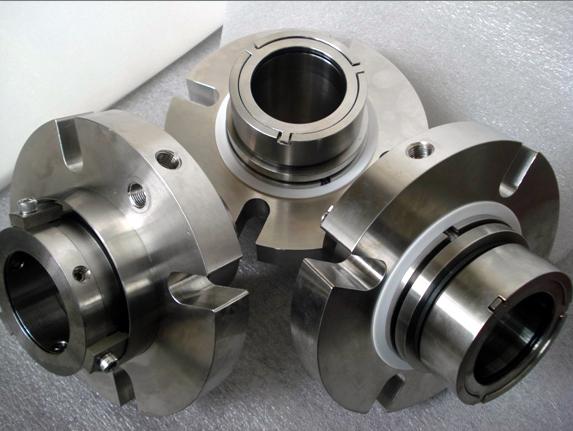

SLK700机械密封
| 型 号： | SLK700 |

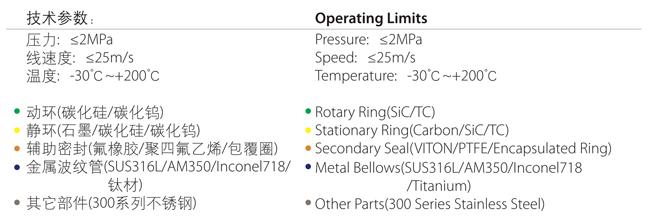

| 温 度： | -30℃～+200℃（mm） |
| 技术参数： | |
| 压 力： | ≤2MPa （mm） |
| 线 速 度： | ≤25米/秒 |
| 材 料： | 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/碳化钨） 辅助密封(柔性石墨） 金属波纹管(SUS316L/AM350/Inconel718/钛材/哈氏C/合金20 |

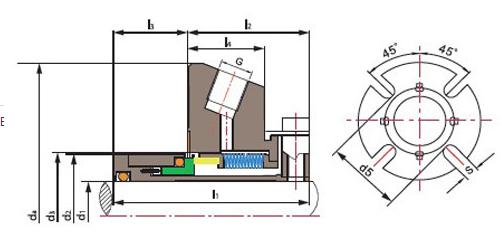

Seal size | d1 | d2 | d3 | da | l1 | l2 | l3 | l4 | S | G | d5 | |
min | max | |||||||||||
25 | 25 | 43.0 | 44.0 | 51.0 | 105 | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 62 |
28 | 28 | 46.0 | 47.0 | 52.0 | 105 | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 62 |
30 | 30 | 48.0 | 49.0 | 56.0 | 105 | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 65 |
32 | 32 | 49.8 | 51.0 | 57.0 | 110 | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 67 |
33 | 33 | 49.8 | 51.0 | 57.0 | no | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 67 |
35 | 35 | 53.0 | 54.0 | 61.5 | 113 | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 71 |
38 | 38 | 56.0 | 57.0 | 66.0 | 123 | 67 | 42.4 | 24.6 | 25.4 | 14 | 1/4" | 76 |
40 | 40 | 58.0 | 59.0 | 68.0 | 123 | 67 | 42.4 | 24.6 | 25.4 | 16 | 3/8" | 76 |
42 | 42 | 60.5 | 61.5 | 69.5 | 133 | 67 | 42.4 | 24.6 | 25.4 | 16 | 3/8" | 80 |
43 | 43 | 60.5 | 61.5 | 70.5 | 133 | 67 | 42.4 | 24.6 | 25.4 | 16 | 3/8" | 80 |
45 | 45 | 62.5 | 64.0 | 73.0 | 138 | 67 | 42.4 | 24.6 | 25.4 | 16 | 3/8" | 83 |
48 | 48 | 65.6 | 67.0 | 75.0 | 138 | 67 | 42.4 | 24.6 | 25.4 | 16 | 3/8" | 85 |
50 | 50 | 68.0 | 69.0 | 78.0 | 148 | 67 | 42.4 | 24.6 | 25.4 | 16 | 3/8" | 88 |
53 | 53 | 72.0 | 73.0 | 83.0 | 148 | 67 | 42.4 | 24.6 | 25.4 | 18 | 3/8" | 98 |
55 | 55 | 73.0 | 74.0 | 87.0 | 148 | 67 | 42.4 | 24.6 | 25.4 | 18 | 3/8" | 97 |
60 | 60 | 78.0 | 79.0 | 91.0 | 157 | 67 | 42.4 | 24.6 | 25.4 | 18 | 3/8" | 102 |
65 | 65 | 83.0 | 84.5 | 98.5 | 163 | 67 | 42.4 | 24.6 | 25.4 | 18 | 3/8" | 109 |
70 | 70 | 93.0 | 95.0 | 108.0 | 178 | 67 | 42.4 | 24.6 | 25.4 | 18 | 3/8" | 118 |
75 | 75 | 100.0 | 101.6 | 118.0 | 190 | 84 | 57.4 | 26.6 | 28.0 | 18 | 3/8" | 129 |
80 | 80 | 106.4 | 108.0 | 124.0 | 195 | 84 | 57.4 | 26.6 | 28.0 | 18 | 3/8" | 135 |
85 | 85 | 109.5 | 111.1 | 128.0 | 198 | 84 | 57.4 | 26.6 | 28.0 | 22 | 3/8" | 139 |
90 | 90 | 115.9 | 117.5 | 135.0 | 205 | 84 | 57.4 | 26.6 | 28.0 | 22 | 3/8" | 145 |
95 | 95 | 119.1 | 120.7 | 138.0 | 208 | 84 | 57.4 | 26.6 | 28.0 | 22 | 3/8" | 148 |
100 | 100 | 125.4 | 127.0 | 144.0 | 218 | 84 | 57.4 | 26.6 | 28.0 | 22 | 3/8" | 154 |
